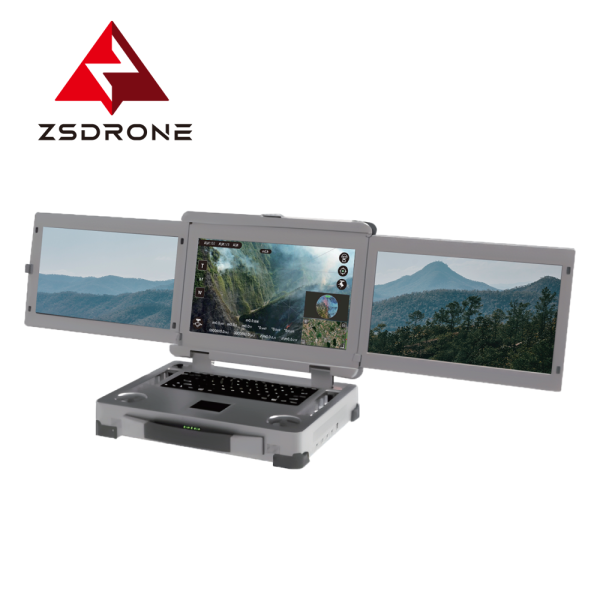

GCS-T30 Industrial UAV Ground Station

Stock:
Brand: ZSDrone
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Ground Stations
CPU Intel i7 11th generation CPU
Working Hours 4-5h
System Windows 10/Linux
Graphics Card Intel Iris Xe Graphics (Optional Independent Graphics Card)
SSD Storage & RAM 16G&512GB (Customizable)
Wifi 2.4G/5.8G Wifi, Bluetooth 4.0
Screen 3x15.6 inch Screen, 1920×1080 Resolution
Power Display Computer System Display / LED Battery Level
External Interface 2xUSB3.0/1×HDM I/1×LAN/2×SM A-KF
Brightness 1000nit
Size 416×330×118mm
Battery 12.6V 18AH
Weight 11kg
Temperature -20℃~60℃
Control Output 18 channels-dual SBUS output/USB-HID
Channels Type 2xfliaht jovsticks/1xthumb joystick/8xthree-position toggle switches/2xrotary knobs/2xtwo-position toggle switches
Remote Control Tuning Upper Computer
Reserve Space 140×70×27 mm
Reserved Interface 6×RS232/2×USB/1×RJ45
Reserved Power Supply 12V 3A
